Nova Green Bill Acceptor



GPT's NOVA GREEN is a high performance bill acceptor which incorporates the GPT patented SMART STACKER.

GPT has led the way for nearly a decade with the concept of one bill acceptor for all currencies and markets. NOVA GREEN continues this path with a sophisticated design, top performance and unrivalled quality.

Stand Features

  • Accepts All Currencies Up To 85mm Wide
  • Consistent 99% Acceptance Rates
  • Four-Way Bar-code Recognition
  • Remote Software Update Ability
  • USB Service Port
  • USB/Serial Communications (v2.2 + ID003)
  • Universal 12-24 Volt Operation
  • Multi Currency Handling
  • Anti-Tampering Sensors

Configurations

  • Down - stacker 500 & 1000 note
  • Fits the international gaming mechanical envelope

Optional Features

  • RFID smart stacker option GPT's Patented SDA (soft drop analyzer) technology records all transactions
  • USB service tool
  • option to lock head and stacker to enclosure
  • diagnostics / statistics tool

Technical Data

  • for more detailed information, please contact your local GPT office for assistance

Bank note Validation

  • Four - way 99% acceptance of all bank notes from 62 mm - 85mm wide, 115 mm - 170 mm long
  • Note centering for accurate validation and uniformed stacking of notes in the note stacker
  • sealed optics for reduced maintenance
  • validation and stack cycle less than 3 seconds

Communication Protcols

  • Standard - V2.2 Serial and ID - 003
  • Optional - VFM, cc Talk, Parallel, High level pulse

Power Source and Requirements

  • Wide operating voltage: 11 VDC to 26 VDC
  • Power consumption : idle state 400mA, accepting / Stacking states 1.5A
  • Peak (Motor Stall) 3.0 A

Environment Factors

  • Operating temperature +3c to 50C
  • Storage temperature -20c to 70c
  • Humidity: 5% to 95% (non - condensing)

Shipping Weight

  • 3.0kg

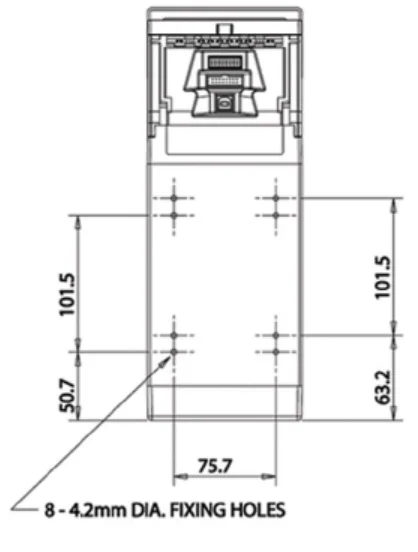

nova green drawing 2.jpg

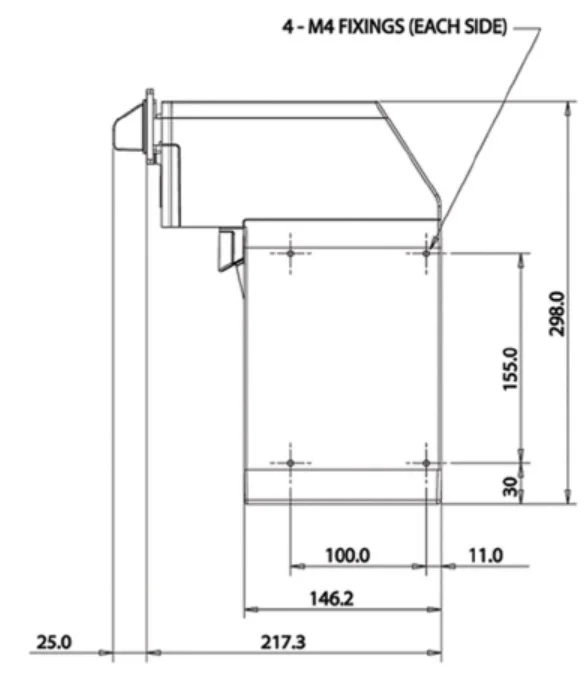

nova green drawing 3.jpg
nova green drawing 4.jpg
nova green drawing.jpg
