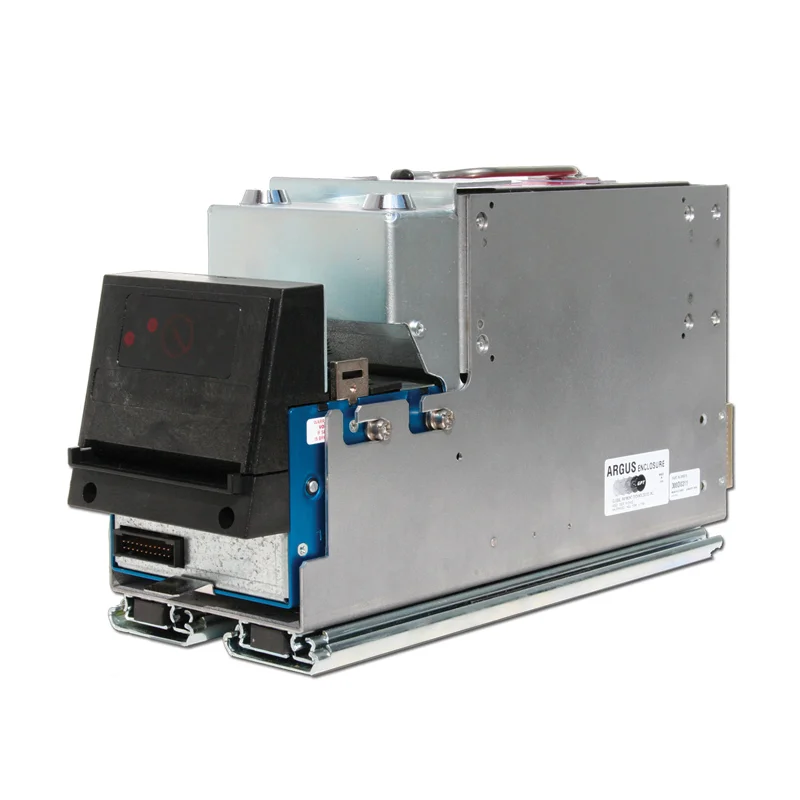

SA4 IBIS
STACKERS
SA4 A4 Compact

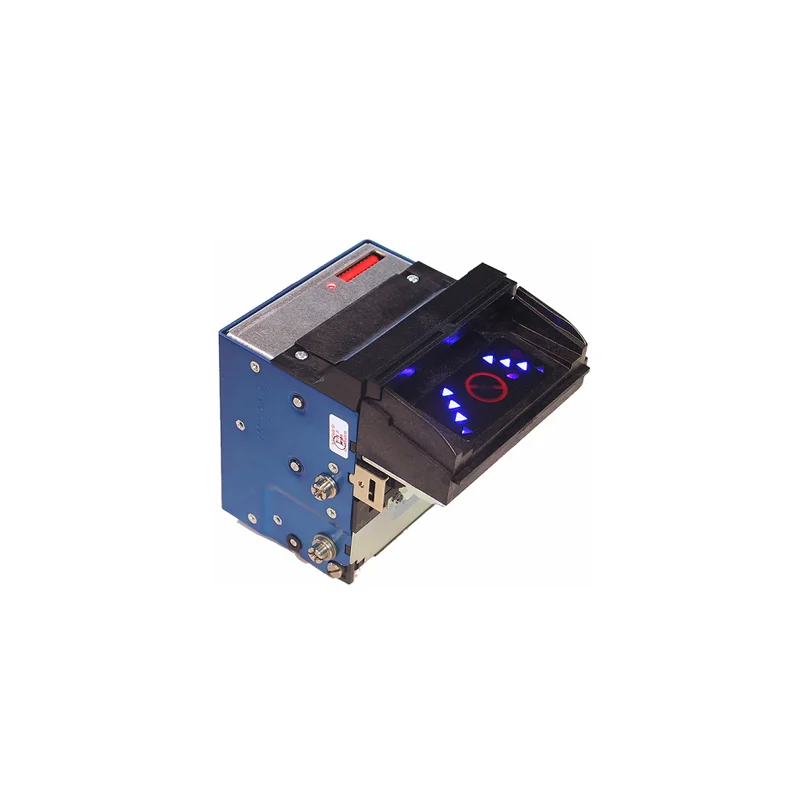

SA4 BILL ACCEPTOR
The SA4 is GPT's high performance high speed bill acceptor. It is the next step in the evolution of GPT's G2 and ARGUS products which pioneered the concept of a universal bill acceptor for all currencies. The SA4 is packed with features including GPT's patented SDA (smart stacker), 4 - way bar code reader and multi currency acceptance.
Configurations
- Down - Stacker
- Back - Stacker
- Stacker-less
Standard Features
- 4- Way bar code Acceptance
- Proven Anti -Tampering Features
- Exceptionally Secure Note Handling Ability
- Strong Blue Anodized Sheet Metal Construction
- Animated Intelligent Bezel
Optional Features
- Back stacker with lockable sliding enclosure
- GPT's patented SDA (soft drop analyzer) technology records all transactions

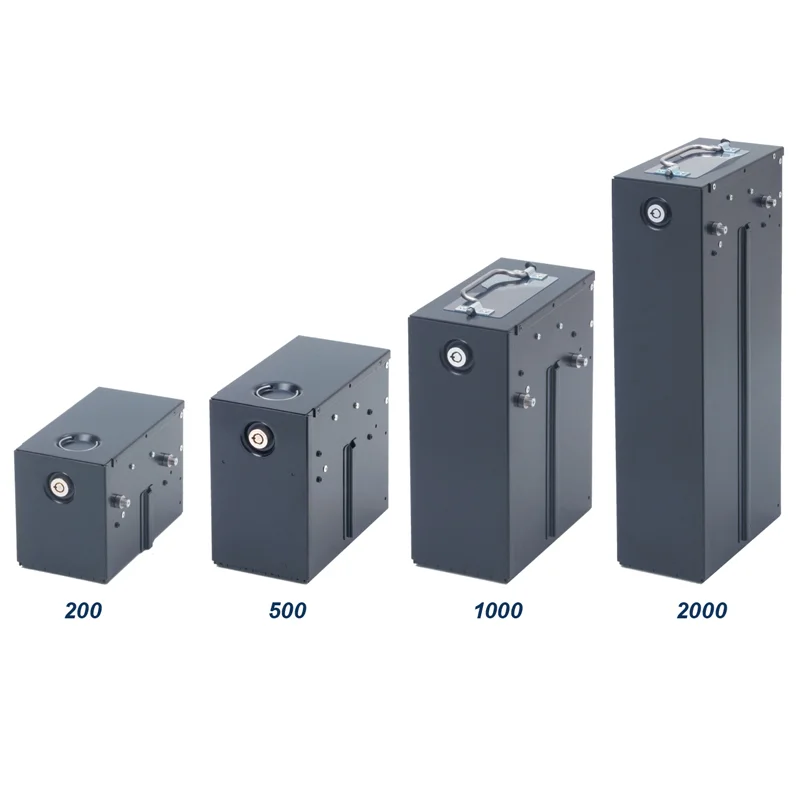

- 500, 100 or 2000 bill cash box
- 500 bill High Speed cash box (500 HS)
- 12 or 24 Volt
- External power supply available for 110VAC to 230 VAC
Bank Note Validation
- High speed four - way 98% acceptance of all bank - notes from 62mm to 85 mm wide
- Largest banknote database of currencies in the world
- Sealed optics for reduced maintenance
- High - Sensitivity Magnetic Circuit
Communications Protocols
- Standard - V2.2 Serial
- Optional - ID003 , VFM , cc Talk, A2A or High Level Pulse
Power Source and Requirements
- Standard operating voltage: 20 to 35 VDC
- Optional 12 VDC
- Power consumption (max) : Idle state: 7W, accepting / stacking states 24W
- in-rush current: 4.5 Amperes (max, current limited) for 5 milliseconds at 24VDC
Environmental Factors
- Operating temperature: 0c - 60c
- Storage temperature -20c - 70c
- Humidity 0% to 90% (non-condensing)
